BRM CHC5832 FLEX-HONE®, 0.625" (15.9mm) bore, 0.031-0.050 Chamfer, 320 Grit (SC)

Name: BRM CHC5832 FLEX-HONE®, 0.625" (15.9mm) bore, 0.031-0.050 Chamfer, 320 Grit (SC)
Brand: Brush Research Manufacturing (BRM)
SKU: CHC5832
Price: 33.88 USD
Availability: OutOfStock

SKU: CHC5832

Sold out

$33.88 - $33.88

$33.88

$33.88 - $33.88

$33.88

Availability:

Out of stock

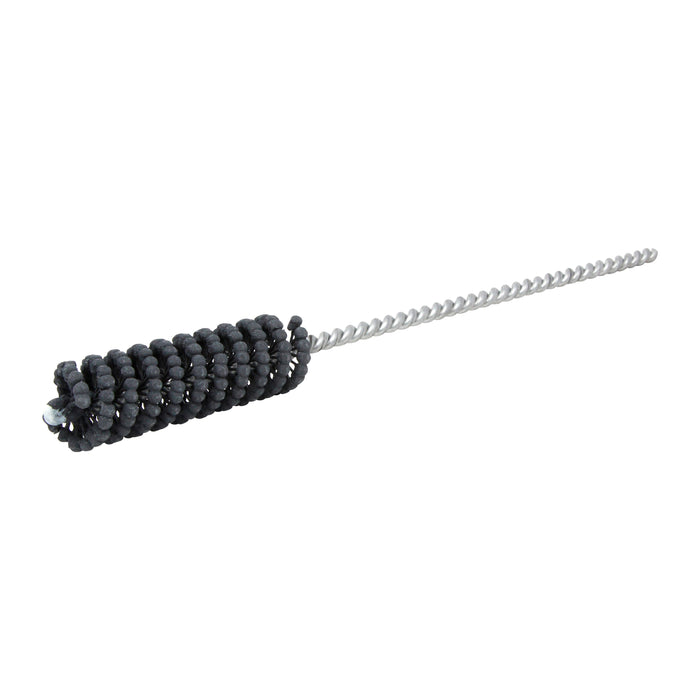

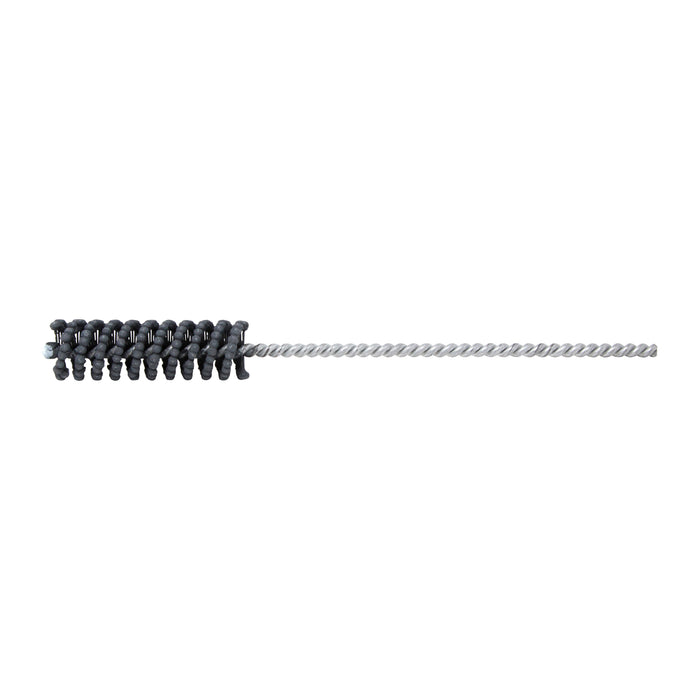

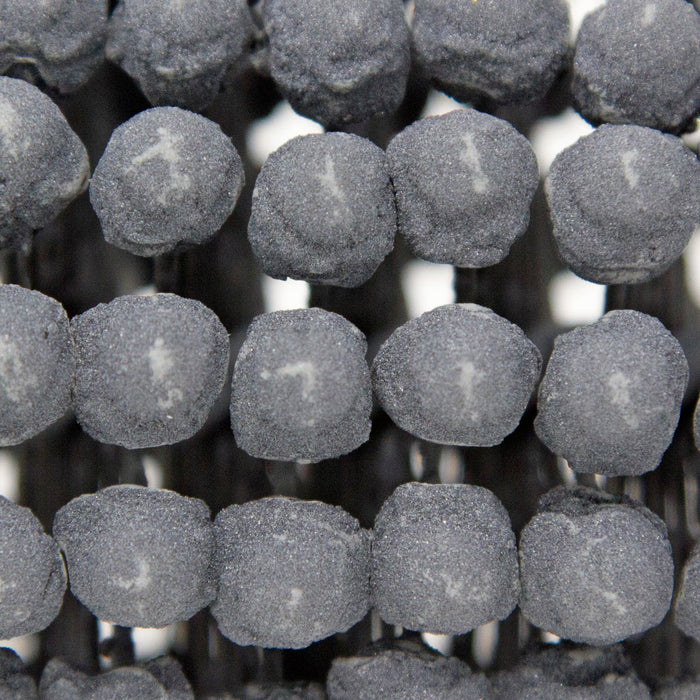

The CHC5832 Chamfer FLEX-HONE® tool for surface finishing and deburring is designed for bore size of 0.625" (15.9mm) and chamfers between 0.031" and 0.050". This tool features 2.50" of abrasive globules which are composed of 320 grit Silicon Carbide (SC) and are excellent for Mild steel, stainless steel, cast iron and other softer ferrous materials. 320 grit generally provides an Ra Finish range of 18 - 30 Microinch (.5 - .7 Micrometer).

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

Proudly Made in the USA
Self Centering, Self Aligning, Self Compensating for Wear

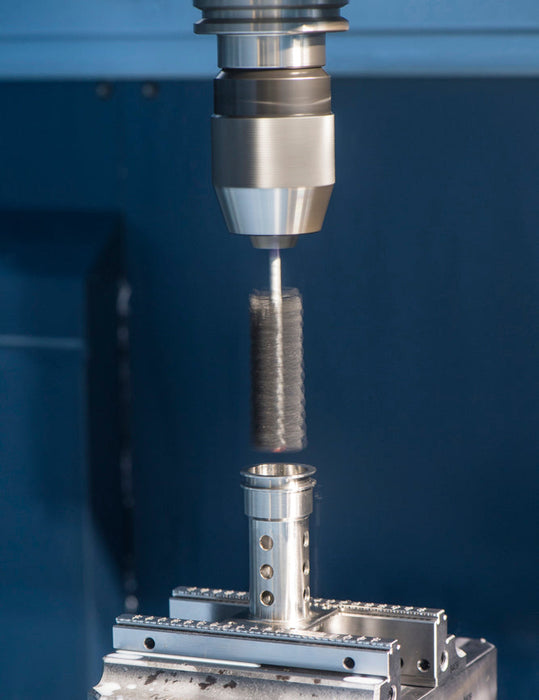

Can be used in virtually any rotating spindle
Commonly used for removing micro burrs and stress risers of chamfers
Polish and radius the inner and outer corners of a hole

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 0.625

Bore Diameter (mm) 15.9

Chamfer Range 0.031" - 0.050"

Overall Length (in) 8

Abrasive Part (in) 2.5

Abrasive Type Silicon Carbide

Grit 320

Tip Marking White

Stem Marking Silver/No Color

Recommended RPM 900 - 1000

Feed Rate (ipm) 10 - 2500

Lubrication Required

Power Requirements 1/6 hp to 1/4 hp

Ra Range 18 - 30 Microinch (.5 - .7 Micrometer)

Series FLEX-HONE® for Chamfers

Stem Diameter (in) 0.19

Applicable Materials Mild steel, stainless steel, cast iron and other softer ferrous materials

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469161710

Prop 65 Warning Description

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

description

Brush Research’s Chamfer FLEX-HONE® Tools utilize BRM’s FLEX-HONE® technology in a unique design for blending and radiusing the outer corners (the intersection of the chamfer and flange face) and the inner corners and hole. The increased flexibility allows the tool to pass through thin web sections and polish the chamfer on the back side as well. Polished and radiused chamfer surfaces have been shown to be very beneficial on critical rotating parts and removes stress risers caused by the chamfering operation. The tools come in a variety of grit sizes and abrasive types and are suitable for finishing titanium, Inconel and nickel based stainless steel alloys. The tool eliminates hand finishing operations and produces consistent finishes from hole to hole, part to part.
