BRM CHB7M170200CCBN FLEX-HONE®, 0.276" (7mm) bore, 0.016-0.030 Chamfer, 170/200 Mesh Grit (CCBN)

Name: BRM CHB7M170200CCBN FLEX-HONE®, 0.276" (7mm) bore, 0.016-0.030 Chamfer, 170/200 Mesh Grit (CCBN)
Brand: Brush Research Manufacturing (BRM)
SKU: CHB7M170200CCBN
Price: 34.21 USD
Availability: OutOfStock

SKU: CHB7M170200CCBN

Sold out

$34.21 - $34.21

$34.21

$34.21 - $34.21

$34.21

Availability:

Out of stock

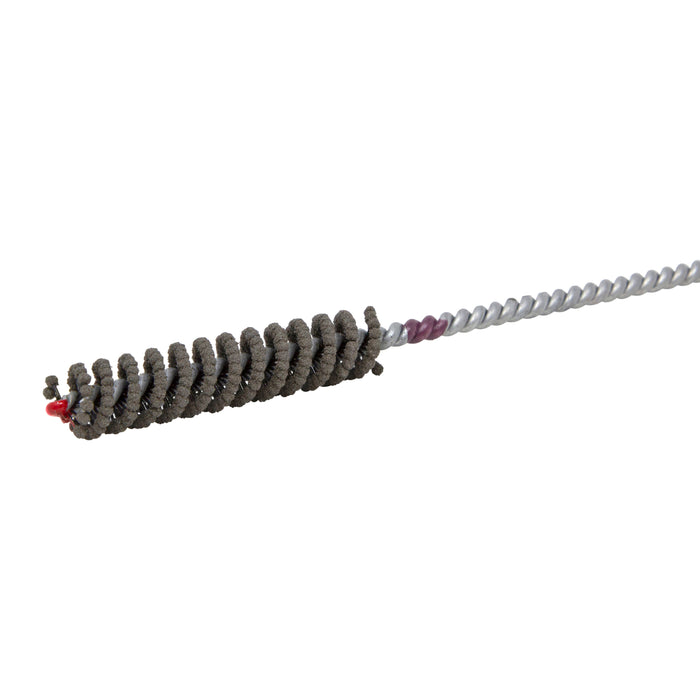

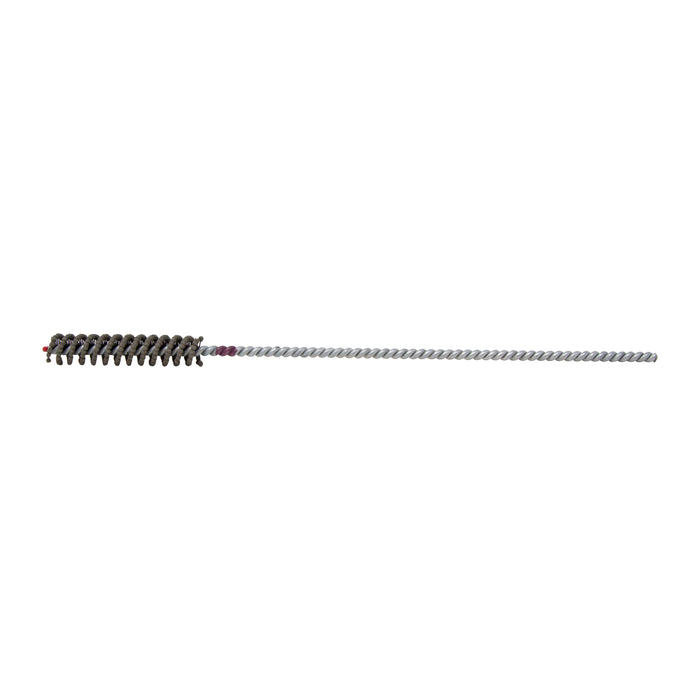

The CHB7M170200CCBN Chamfer FLEX-HONE® tool for surface finishing and deburring is designed for bore size of 0.276" (7mm) and chamfers between 0.016" and 0.030". This tool features 2.00" of abrasive globules which are composed of 170/200 Mesh grit Cubic Boron Nitride (CCBN) and are excellent for High nickel alloy steels. 170/200 Mesh grit generally provides an Ra Finish range of 30 - 40 Microinch (.7 - 1 Micrometer).

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

Proudly Made in the USA
Self Centering, Self Aligning, Self Compensating for Wear
Can be used in virtually any rotating spindle
Commonly used for removing micro burrs and stress risers of chamfers
Polish and radius the inner and outer corners of a hole

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 0.276

Bore Diameter (mm) 7

Chamfer Range 0.016" - 0.030"

Overall Length (in) 8

Abrasive Part (in) 2

Abrasive Type Cubic Boron Nitride

Grit 170/200 Mesh

Tip Marking Red

Stem Marking Purple

Recommended RPM 1000 - 1200

Feed Rate (ipm) 10 - 2500

Lubrication Required

Power Requirements 1/6 hp to 1/4 hp

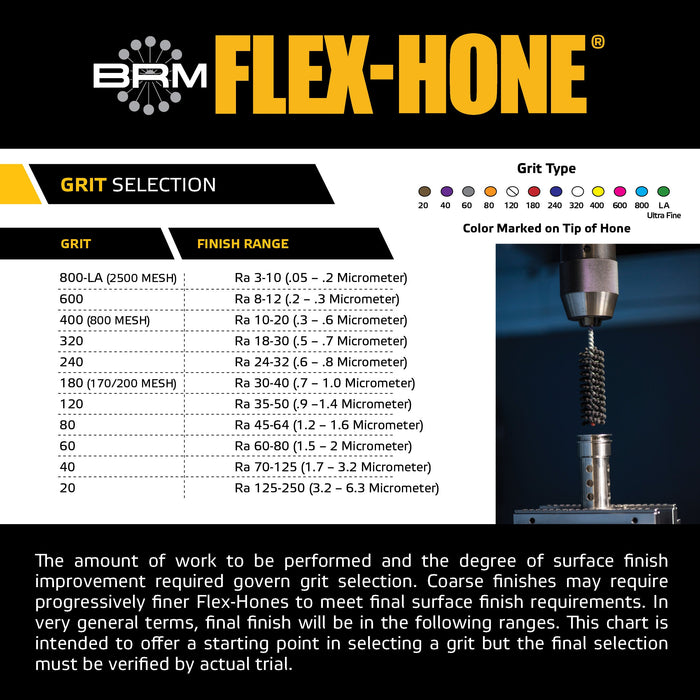

Ra Range 30 - 40 Microinch (.7 - 1 Micrometer)

Series FLEX-HONE® for Chamfers

Stem Diameter (in) 0.125

Applicable Materials High nickel alloy steels

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469161185

Prop 65 Warning Description

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

description

Brush Research’s Chamfer FLEX-HONE® Tools utilize BRM’s FLEX-HONE® technology in a unique design for blending and radiusing the outer corners (the intersection of the chamfer and flange face) and the inner corners and hole. The increased flexibility allows the tool to pass through thin web sections and polish the chamfer on the back side as well. Polished and radiused chamfer surfaces have been shown to be very beneficial on critical rotating parts and removes stress risers caused by the chamfering operation. The tools come in a variety of grit sizes and abrasive types and are suitable for finishing titanium, Inconel and nickel based stainless steel alloys. The tool eliminates hand finishing operations and produces consistent finishes from hole to hole, part to part.

User Guides

FLEX-HONE® Resource Guide The Flex-Hone Resource Guide teaches you how to select the right tool for your application. Have you ever had questions about tool diameter, grit selection, abrasive type or recommended RPMs? We go over all of this and more.

Brochures

FLEX-HONE® for Chamfers Brochure

Case Studies

Chamfer Hones for Jet Engine Fasteners

Safety Information

FLEX-HONE® SDS Sheet

View all book resources View all video resources
